What is KPG 193 BPESD-11?

KPG 193 BPESD-11 extends the KPG 193 test system with Korean transmission grid scenarios from 2022 to 2038 based on Korea's 11th Basic Plan for Long-Term Electricity Supply and Demand (BPESD-11, 11차 전력수급기본계획). It provides yearly MATPOWER-compatible network snapshots, hourly time-series profiles, renewable capacity data, and expansion metadata.

The dataset reflects planned generation and transmission changes under Korea's 11th Basic Plan for Long-Term

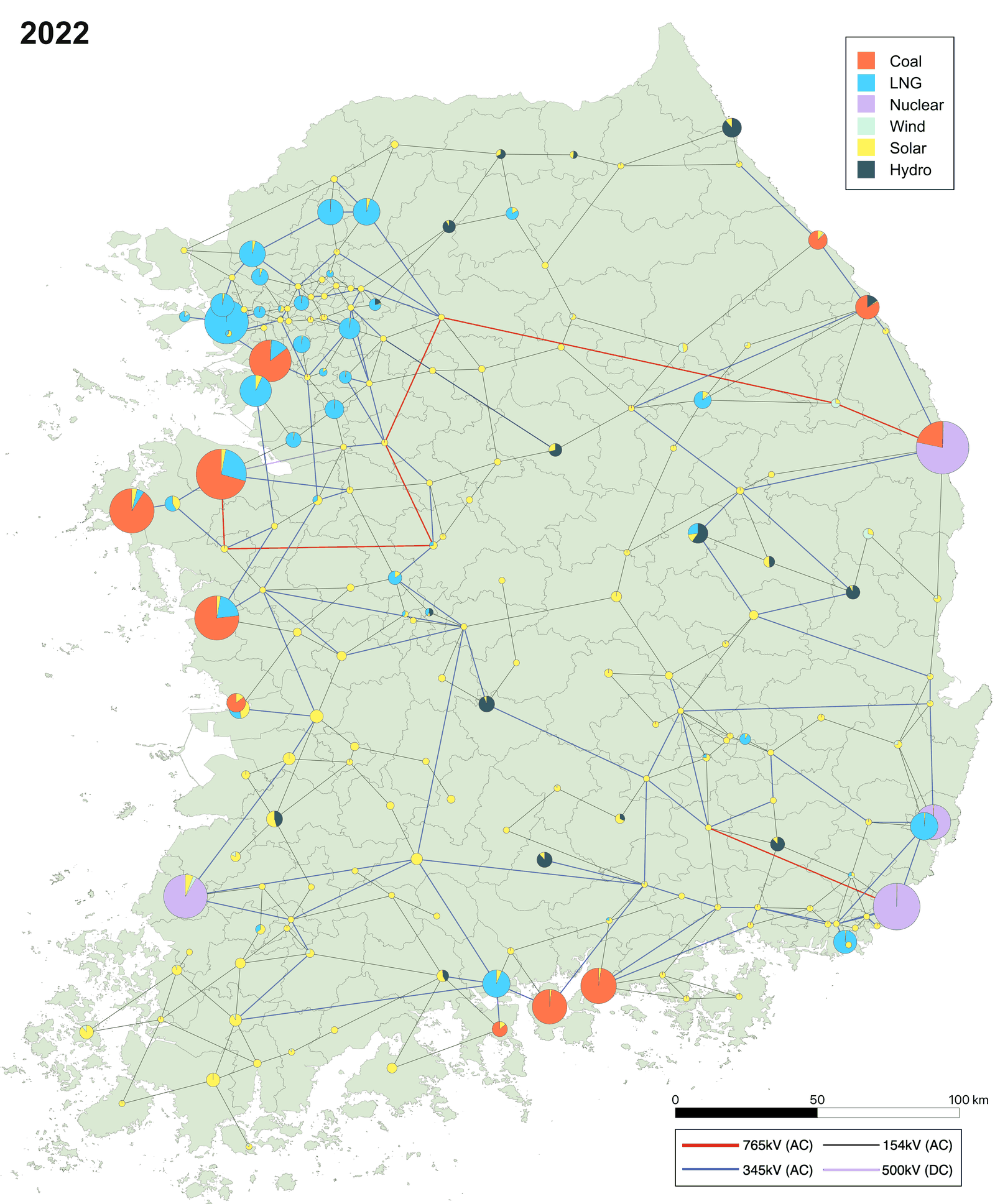

Network evolution of the KPG 193 BPESD-11 test system from 2022 to 2038.

Electricity Supply and Demand (BPESD-11). Across the planning horizon, it includes 61 generator additions, 49 generator retirement records, 207 AC branch additions, and 7 DC line additions.

This dataset is part of the KPG Test System module within the KPG (Korean Power Grid) Platform. It remains compatible with KPG Run for power flow and unit commitment simulations and KPG View for map‑based network and result visualization.

Module	Description
KPG Test System	Synthetic grid data — network, generators, demand, renewable, and commitment profiles
KPG Run	Desktop application for solving ED, UC, DC-OPF, and AC-OPF problems
KPG View	Interactive map-based visualization of grid networks and simulation results

Dataset Overview

Component	Count / range
Buses	193
Active conventional generators	183–199
Conventional generator records	183–244
AC branches	358–565
DC lines	1–8
Voltage levels	154 / 345 / 765 kV
Renewable types	Solar / Wind / Hydro
Base year	2022
Planning horizon	2023–2038
Total years	17
Temporal resolution	Hourly, 8,760 h/year (8,784 h in leap years)

Structure

kpg193_v2_0_{year}/                 (year: 2022–2038)
├── kpg193_ver2_0_{year}.png         # Network visualization
├── network/
│   ├── m/KPG193_ver2_0_{year}.m      # MATPOWER case file
│   ├── mat/KPG193_ver2_0_{year}.mat  # MATPOWER case file (binary)
│   └── metadata/
│       ├── bus_metadata/
│       │   └── bus_metadata_{year}.csv
│       ├── expansion/
│       │   ├── gen_changes.csv
│       │   ├── line_changes.csv
│       │   └── dcline_changes.csv
│       └── generator_metadata/
│           └── generator_metadata_{year}.csv
├── profile/
│   ├── demand/                      # demand_{day}.csv
│   ├── renewables/                  # renewables_{day}.csv
│   └── commitment_decision/         # commitment_decision_{day}.csv
└── renewables_capacity/
    ├── solar_generators.csv
    ├── wind_generators.csv
    └── hydro_generators.csv

Each profile directory contains one daily file per calendar day (365 files, or 366 files in leap years). Demand and renewable profile files contain 24 hours × 193 buses per day, while commitment files contain hourly on/off status values for conventional generators.

Data Description

`network/`

MATPOWER-compatible case files for each yearly 193-bus Korean transmission network scenario.

`network/metadata/bus_metadata/`

bus_metadata_{year}.csv provides bus location and name metadata.

Column	Description
`bus_id`	Bus ID
`Latitude`, `Longitude`	Geographic coordinates
`name_Korean`, `name_English`	Bus names in Korean and English

`network/metadata/expansion/`

Year-by-year generation and transmission expansion records based on Korea's 11th Basic Plan for Long-Term Electricity Supply and Demand (BPESD-11).

gen_changes.csv — generator additions and retirements

Column	Description
`project_id`, `source`	Plan ID and source
`name_kor`, `name_eng`	Plant name
`effective_year`, `effective_month`	Effective date
`action`	`add` or `retire`
`gen_type`	Fuel type
`bus`	Bus ID
`Pmax`, `Pmin`	Output limits (MW)
`ramp_10`, `ramp_30`	Ramp limits

line_changes.csv — AC branch additions

Column	Description
`project_id`, `source`	Plan ID and source
`effective_year`, `effective_month`	Effective date
`voltage_level`	Voltage class
`fbus`, `tbus`	From/to bus IDs
`r`, `x`, `b`	Branch parameters
`rateA`	Thermal limit (MVA)

dcline_changes.csv — DC line additions

Column	Description
`effective_year`, `effective_month`	Effective date
`voltage_level`	DC voltage class
`fbus`, `tbus`	From/to bus IDs
`Pmin`, `Pmax`	Flow limits (MW)

`network/metadata/generator_metadata/`

generator_metadata_{year}.csv provides cost and technical parameters for conventional generators.

Column	Description
`gen_id`, `bus_id`	Generator and bus IDs
`plant_name_kor`, `unit_name`	Plant and unit name
`pmax_mw`	Maximum output (MW)
`gen_type`	Fuel type
`fuel_cost_krw_per_gcal`	Fuel cost
`heat_lhc_gcal_per_mwh`	Heat rate
`heat_nlhc_gcal_per_h`	No-load heat consumption
`gencost_a`, `gencost_b`, `gencost_c`	Cost coefficients
`final_cost_function_1000krw_per_h`	Cost function

`profile/demand/`

demand_{day}.csv provides hourly active and reactive demand by bus.

Column	Description
`hour`	Hour of day
`bus_id`	Bus ID
`demandP`	Active demand (MW)
`demandQ`	Reactive demand (MVAr)

`profile/renewables/`

renewables_{day}.csv provides normalized renewable generation ratios by bus. Multiply each ratio by the installed capacity in renewables_capacity/ to obtain generation in MW.

Column	Description
`hour`	Hour of day
`bus_id`	Bus ID
`pv_profile_ratio`	Solar ratio
`wind_profile_ratio`	Wind ratio
`hydro_profile_ratio`	Hydro ratio

`profile/commitment_decision/`

commitment_decision_{day}.csv provides hourly on/off status values for conventional generators.

Column	Description
`hour`	Hour of day
`generator_id`	Generator ID
`status`	1 = on, 0 = off

`renewables_capacity/`

Installed renewable capacity by bus for solar, wind, and hydro resources.

Column	Description
`bus_ID`	Bus ID
`Type`	Renewable type
`Pmax [MW]`	Installed capacity
`Pmin [MW]`	Minimum output
